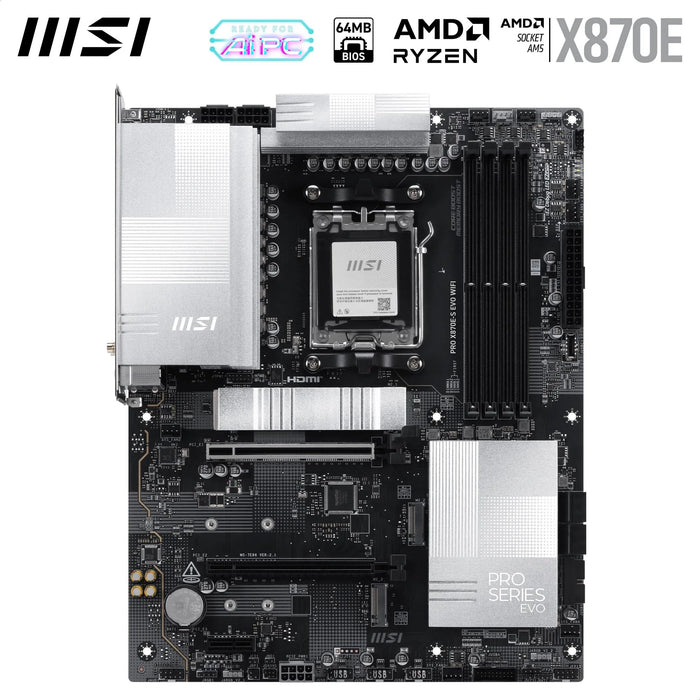

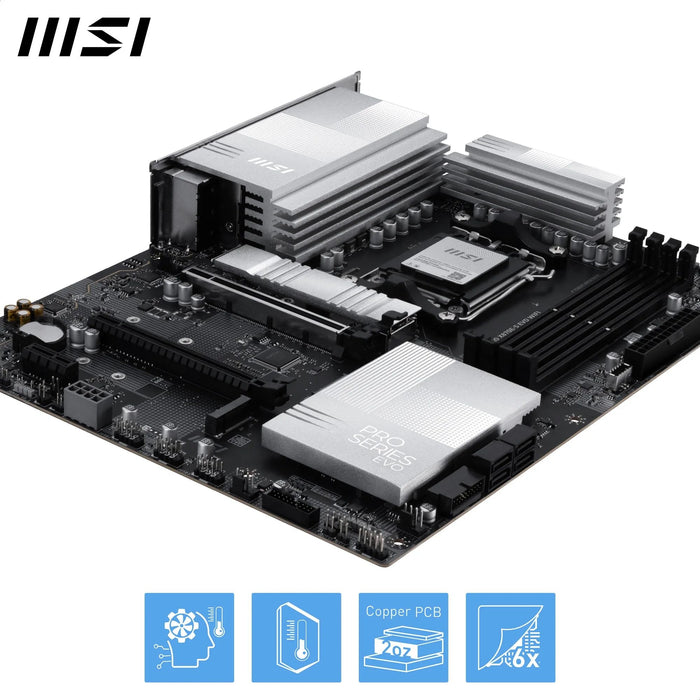

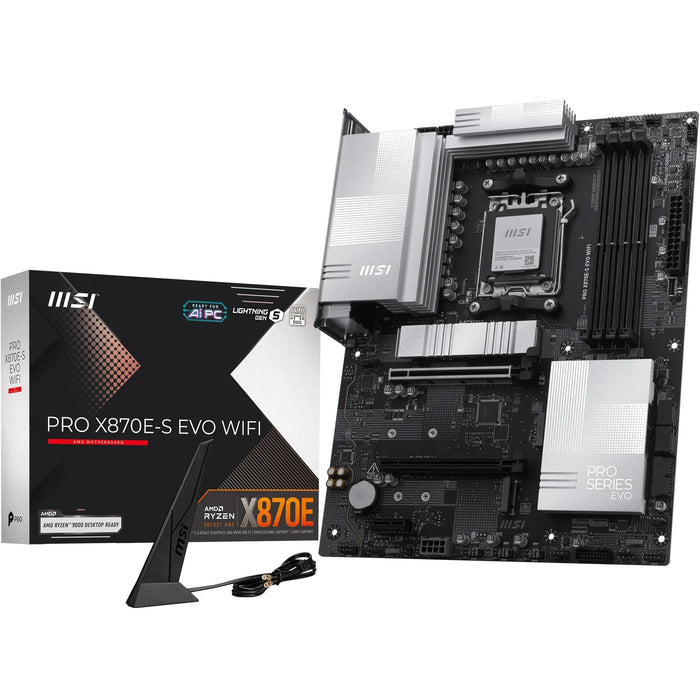

MSI PRO X870E-S EVO WIFI ATX AM5 Motherboard

An MSI PRO X870E-S EVO WIFI ATX motherboard built on the AMD X870E chipset for Socket AM5. It supports AMD Ryzen 9000, 8000 and 7000 Series processors, DDR5 memory up to 256 GB, and is aimed at professionals and creators who need reliable performance and efficient multitasking.

Key Features

• 12+2+1 digital VRM with dual power connectors and 60A Smart Power Stage for high-end processors
• DDR5 memory across 4 slots, up to 256 GB and rated speeds of 8200 MHz

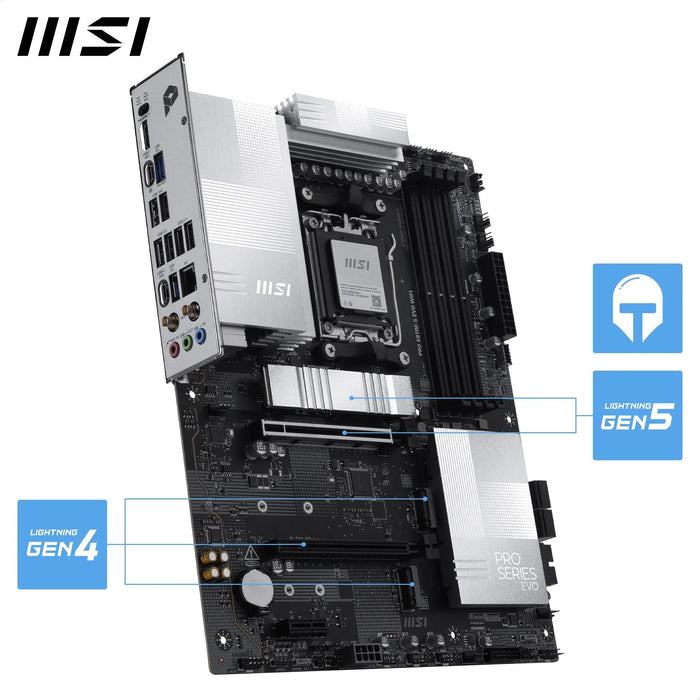

• PCIe 5.0 support on the primary x16 slot, plus 1x PCIe x1 and 3x PCIe x16 slots in total
• 3x M.2 slots: one 2280 PCIe 5.0, one 22110 PCIe 4.0 and one 2280 PCIe 4.0, with EZ M.2 Shield Frozr II
• Supplemental PCIe power for sustained graphics card loads
• Wi-Fi 7 (802.11be) with EZ Antenna and Bluetooth 5.4
• 5 Gigabit Ethernet for wired networking

I/O & Connectivity

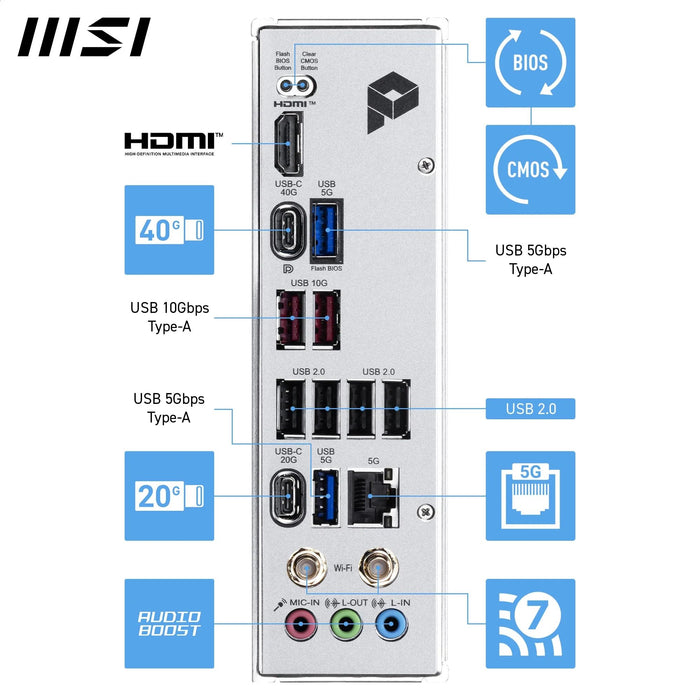

• Rear USB: 2x USB4 Type-C (40Gbps + 20Gbps), 2x USB 3.2 Gen 2 Type-A (10Gbps), 2x USB 3.2 Gen 1 Type-A (5Gbps) and 4x USB 2.0
• Internal USB: 6x USB 2.0 headers, 4x USB 3.2 Gen 1 headers and 1x USB 3.2 Gen 2 header
• Storage: 4x SATA III connectors with RAID 0 and RAID 1 support
• Display outputs: 1x HDMI and 2x DisplayPort 1.4 for Ryzen integrated graphics
• Audio: Realtek ALC897 codec with 7.1 channel output across 3 rear jacks
• Back panel: Clear CMOS button and Flash BIOS button for easy maintenance

Platform & Build Notes

• ATX form factor in black, with 24-pin main and 8-pin CPU power connectors
• UEFI AMI BIOS (512 Mbit) with Flash BIOS and Clear CMOS support, plus a TPM connector
• Fan and RGB headers: 1x CPU fan, 6x case fan, 1x pump, 3x ARGB 5V and 1x RGB 12V
• PC health monitoring for CPU, fans, temperature and voltage
• Windows 11 support
