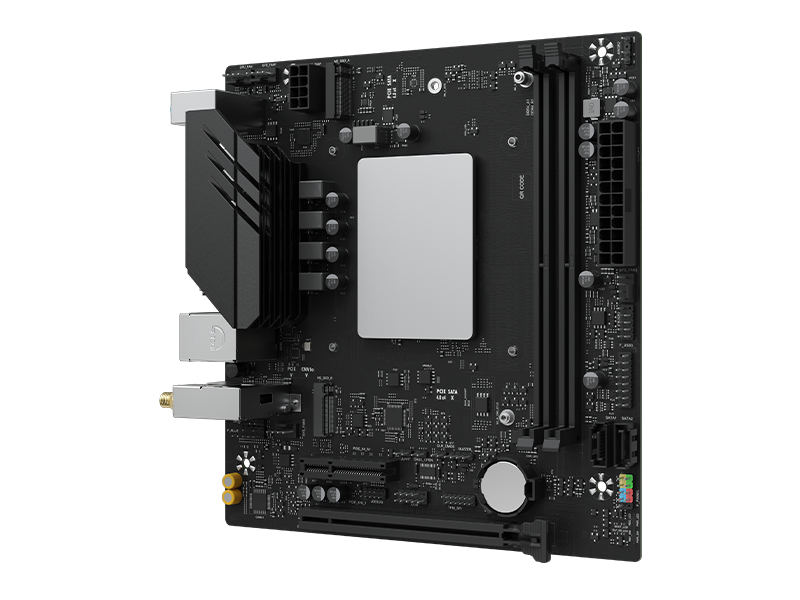

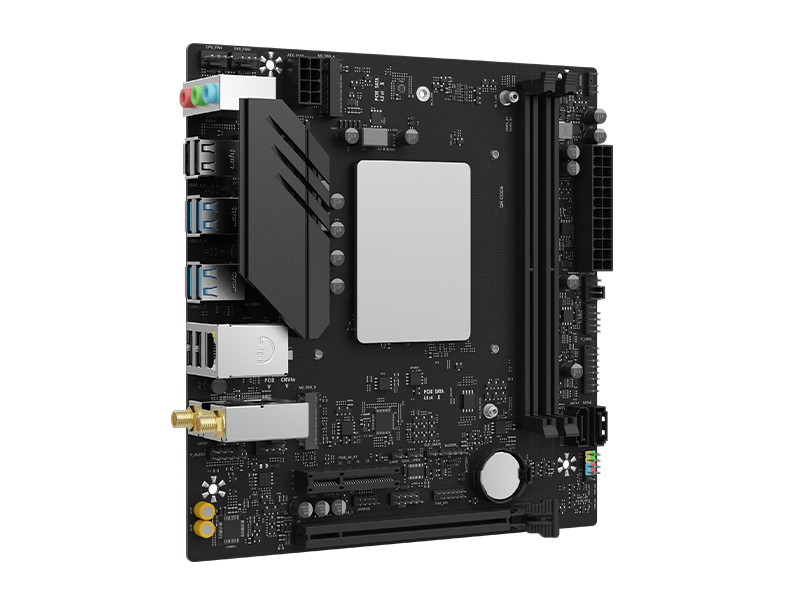

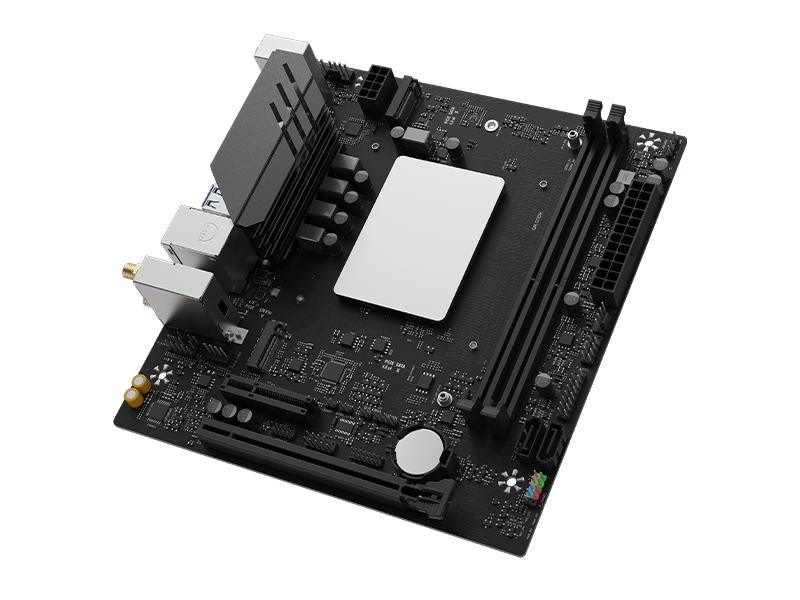

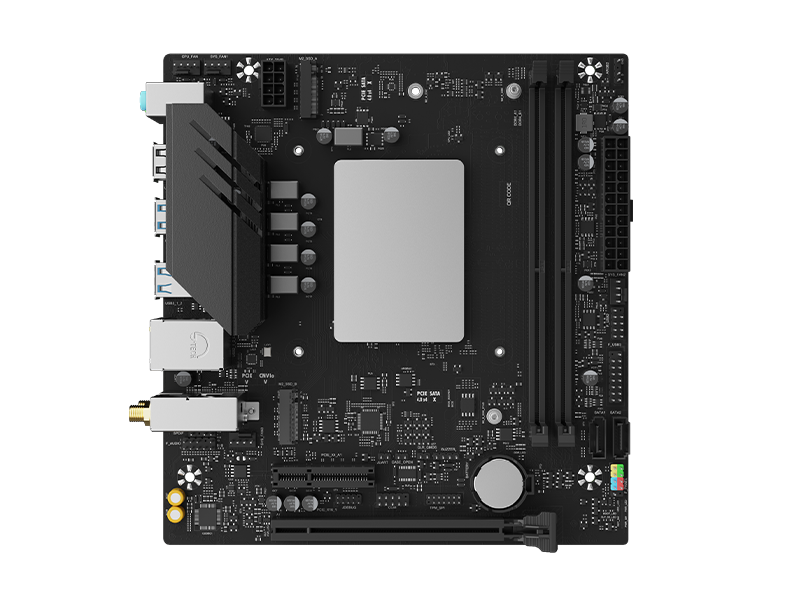

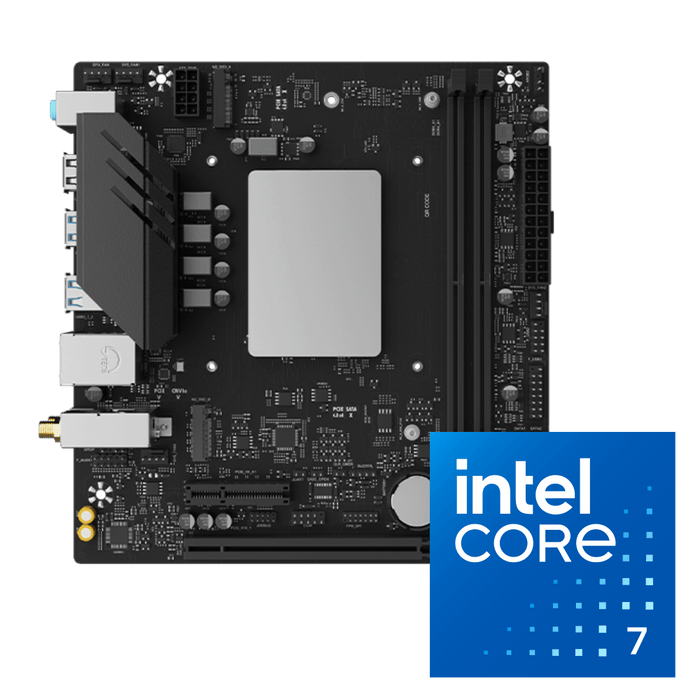

Maxsun MS-MoDT Intel Core 7 230H DDR4 WIFI CPU/Motherboard

Intel Core 7 230H on the desktop

The MS-MoDT 230H D4 WIFI is a compact M-ATX motherboard with an onboard Intel Core 7 230H processor - 10 cores (6 Performance + 4 Efficient), 16 threads and up to 5.2GHz turbo. No separate CPU needed: it is a complete platform out of the box.

Key Features

• Onboard Intel Core 7 230H - 10-core / 16-thread, up to 5.2GHz
• 2 x DDR4 DIMM slots, up to 64GB dual-channel (3200/2933/2666/2400/2133MHz)
• 1 x PCIe 5.0 x16 slot (x8 signal) + 1 x PCIe 3.0 x4 slot
• 2 x M.2 M-Key slots (2242/2280, PCIe 4.0 x4/x2) + 2 x SATA 3.0
• Dr.MOS power design with 8-pin reinforced CPU power connector
• MTK 7902 Wi-Fi 6 + Bluetooth 5.3, Realtek 8111 Gigabit LAN, ALC897 audio

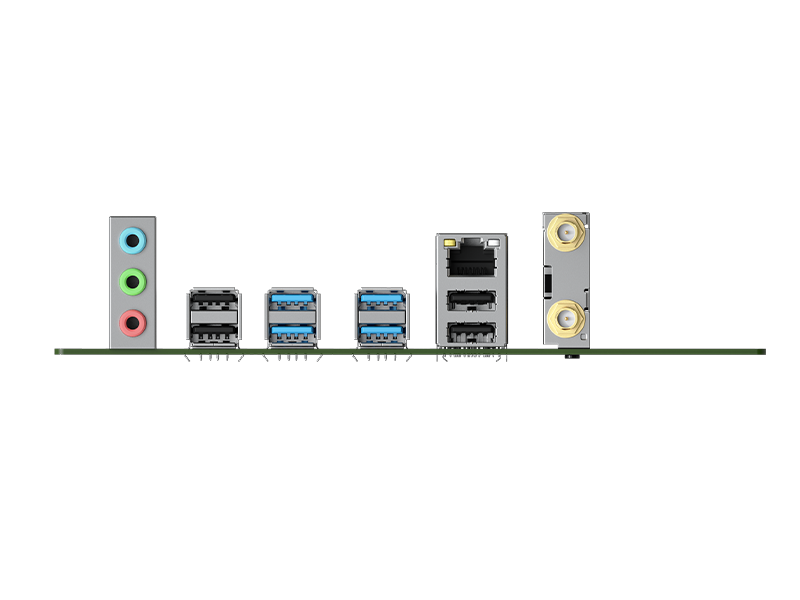

• Up to 12 USB ports: 4 x USB 3.2 Gen2 + 4 x USB 2.0 rear, 2 x USB 3.2 Gen1 + 2 x USB 2.0 headers

Overview

Full product overview from MAXSUN:
