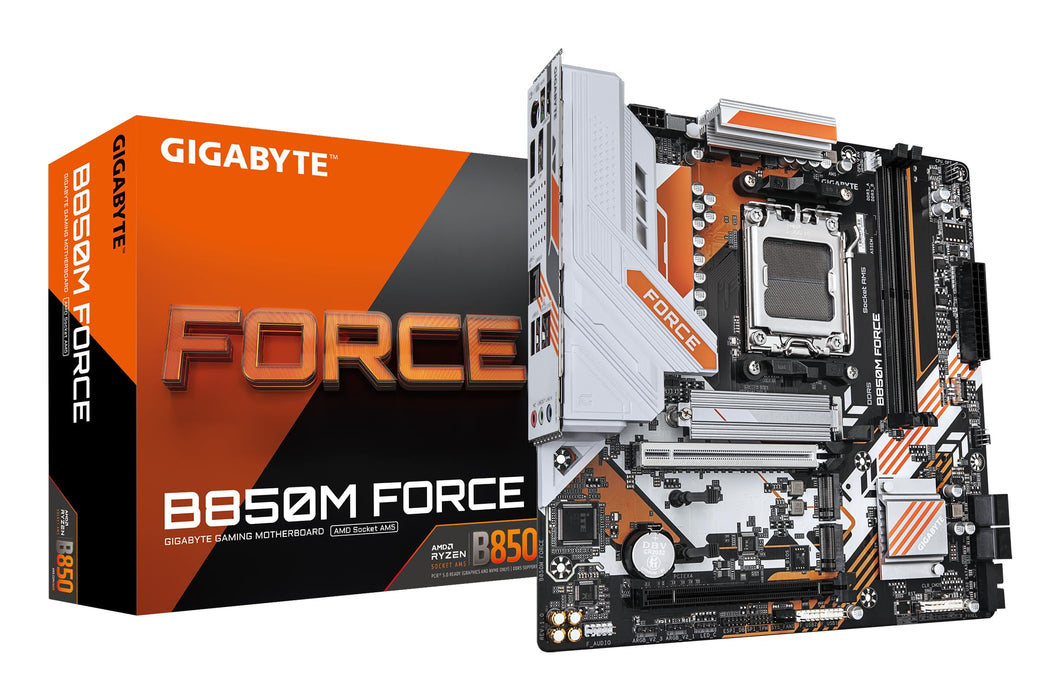

Gigabyte B850M FORCE Micro-ATX AM5 Motherboard

Gigabyte B850M FORCE Micro-ATX AM5 Motherboard

SKU: B850M FORCE
Availability:
in stock
In stock
£119.00
£119.00 - £119.00
£119.00 - £119.00
£119.00
Inc VAT
Delivery Truck
Free Standard Delivery or £5 Off Royal Mail and Parcelforce Delivery Available on UK Orders Over £75 - Excludes Large Items and PCs Read More
TrustScore: 4.8 / 5
★★★★★
See Our Reviews on Trustpilot

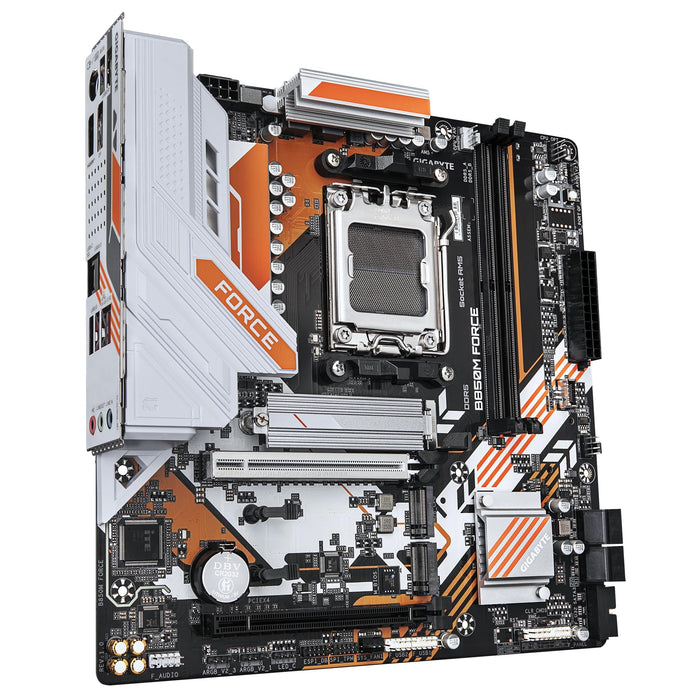

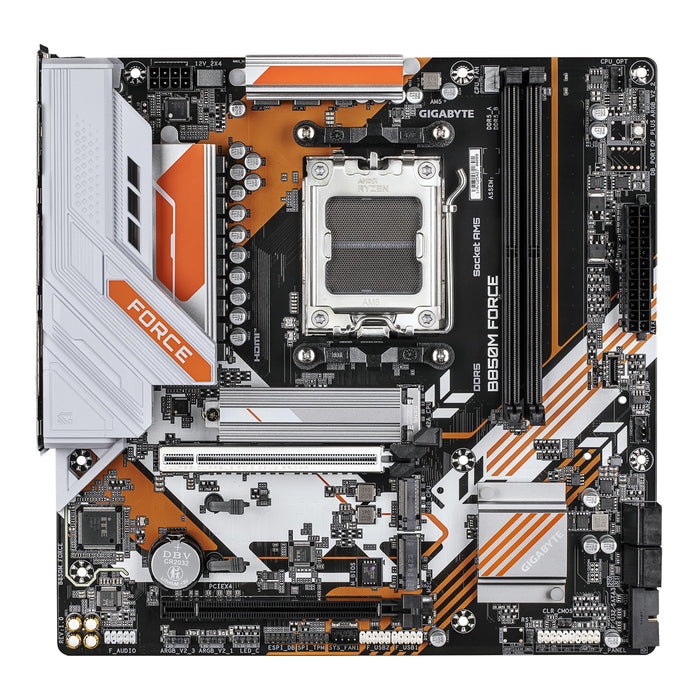

The GIGABYTE B850M FORCE is a Micro ATX motherboard built on the AMD B850 chipset for Socket AM5. It provides a solid foundation for gaming and productivity systems, supporting AMD Ryzen 7000, 8000, and 9000 series processors.

Key Features

  • Digital VRM: 8+2+2 phase power design for stable CPU power delivery.
  • High-Speed Memory: Supports dual-channel DDR5 memory with speeds up to 9600 MHz (OC).
  • Ultra-Fast Storage: Three M.2 slots, including one PCIe 5.0 x4 and two PCIe 4.0 slots, plus four SATA III connectors.
  • Fast Networking: 2.5 GbE LAN port for high-bandwidth wired connections.
  • Integrated Graphics: Equipped with HDMI 2.1 and DisplayPort 1.4 outputs for display directly from compatible AMD Ryzen processors.

Connectivity & Cooling

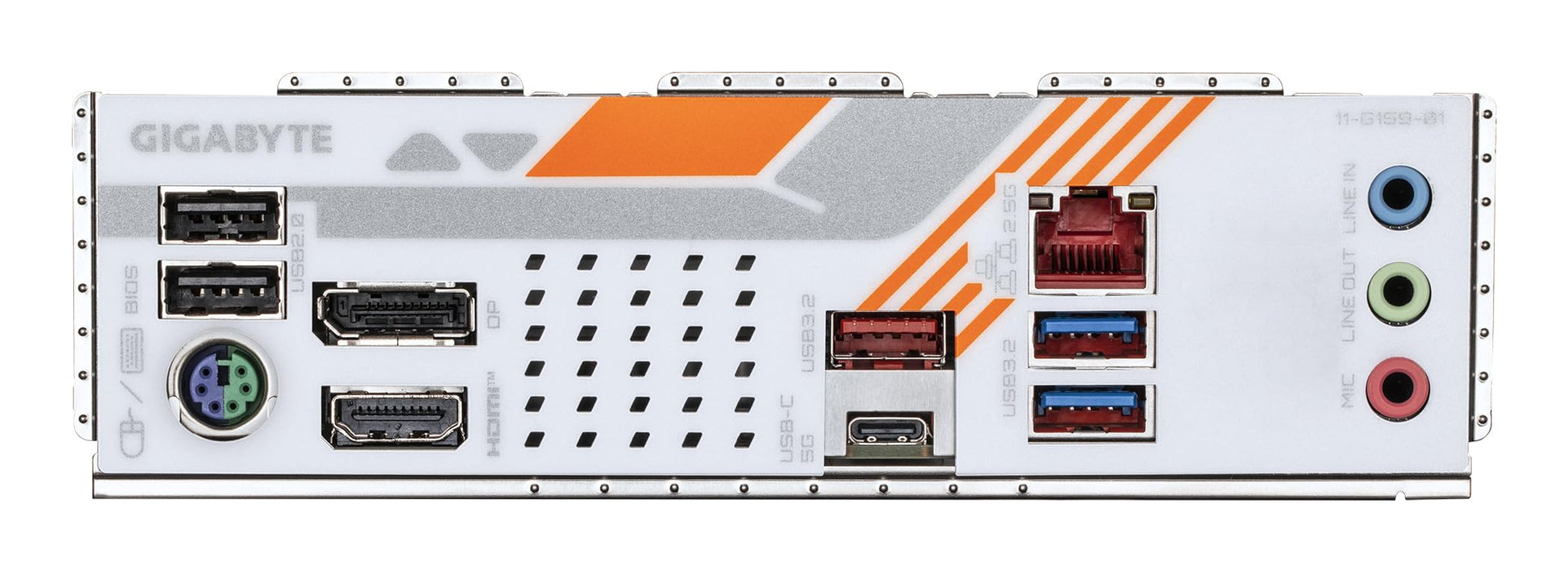

  • USB Ports: Rear I/O includes one USB 3.2 Gen 2 Type-A, one USB-C (Gen 1), two USB 3.2 Gen 1 Type-A, and two USB 2.0 ports.
  • Audio: Realtek ALC897 codec for 7.1-channel high-definition audio.
  • Build-Friendly: Features a PCIe EZ-Latch for easy graphics card installation and a Q-Flash Plus button for BIOS updates without a CPU.
  • Cooling Support: Includes multiple fan headers (CPU and chassis), dedicated water pump headers, and a full suite of hardware monitoring.

Core Specifications

BrandGIGABYTE
ModelB850M FORCE
Form FactorMicro ATX (244 x 244 mm)
ChipsetAMD B850
CPU SocketSocket AM5
Compatible CPUsAMD Ryzen 9000/8000/7000 Series

Memory & Expansion

Memory TypeDDR5-SDRAM
Memory Slots2 x DIMM (Dual Channel)
Max Memory128 GB
Max Memory SpeedUp to 9600 MHz (OC)
PCIe Slots1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (running at x4)
M.2 Slots3 (1x PCIe 5.0, 2x PCIe 4.0)
SATA III Connectors4

Rear I/O & Audio

USB Ports (Back Panel)1x USB-C 3.2 Gen1, 2x USB-A 3.2 Gen1, 1x USB-A 3.2 Gen2, 2x USB 2.0
Video Outputs1x HDMI 2.1, 1x DisplayPort 1.4
LANRealtek 2.5GbE
Audio CodecRealtek ALC897
Audio Channels7.1

Internal Connectors & Features

Power Connectors1x 24-pin ATX, 1x 8-pin EPS
Fan Headers2x CPU Fan, 2x Chassis Fan
RGB Headers3x Addressable RGB Gen2, 1x RGB LED
Water Pump Headers2
Clear CMOS JumperYes
TPM HeaderYes

Physical & OS

Dimensions244 x 244 x 35 mm
BIOS256 Mbit UEFI AMI
Windows SupportWindows 10 x64, Windows 11 x64
Warranty3 Years
In the BoxMotherboard, I/O Shield, SATA Cables, Manual
