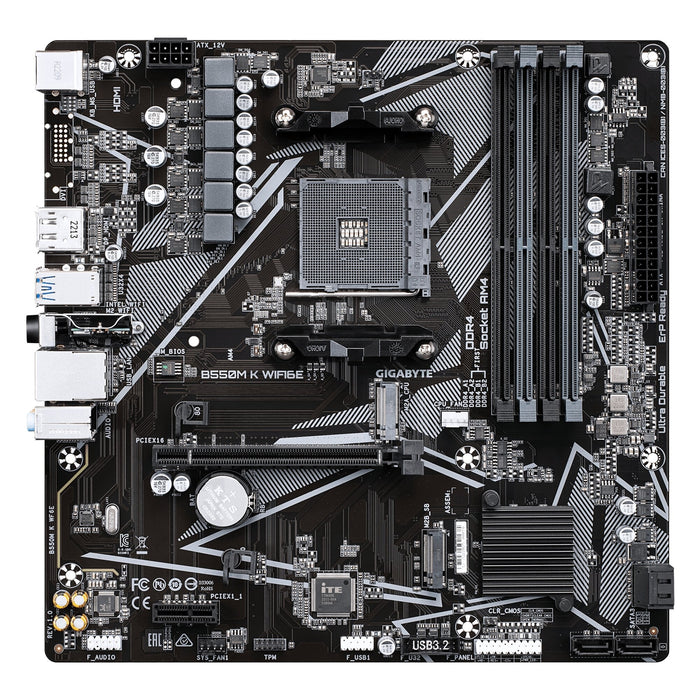

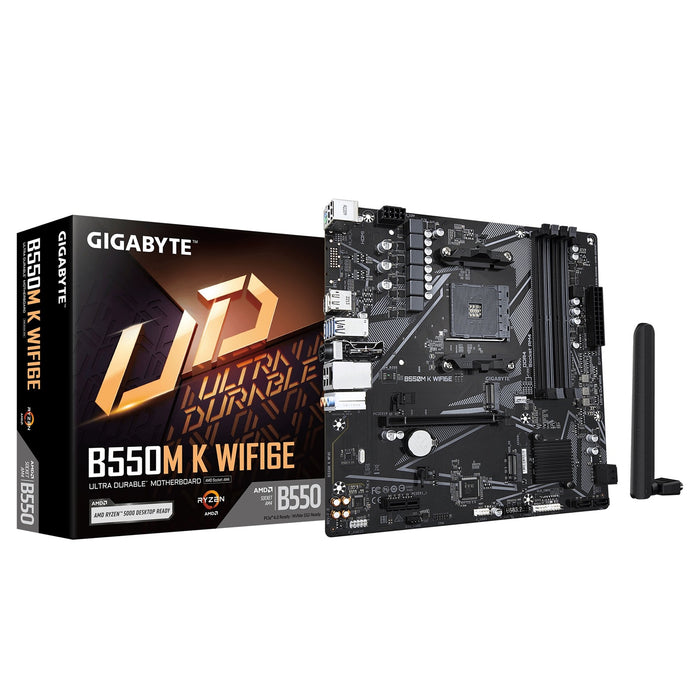

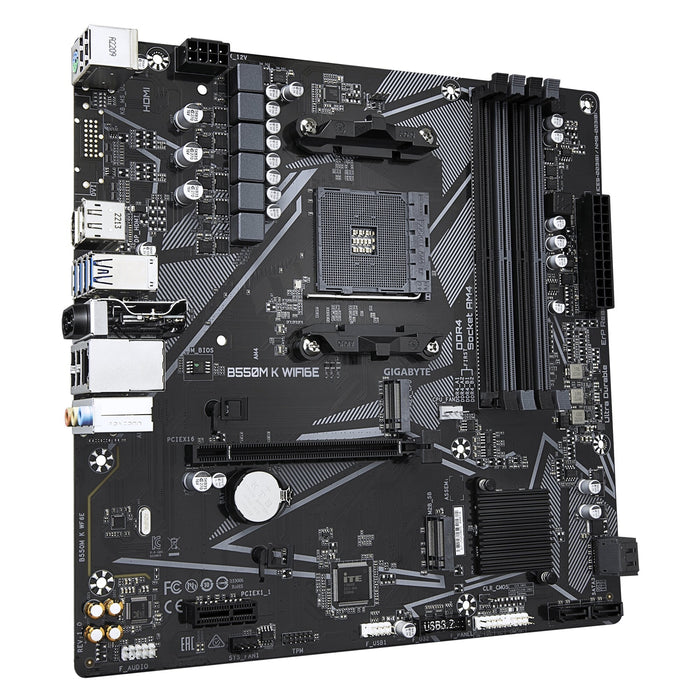

Gigabyte B550M K WIFI6E Micro-ATX AM4 Motherboard

The Gigabyte B550M K WIFI6E is a Micro-ATX motherboard featuring the AMD B550 chipset and AM4 socket, designed for compact and efficient PC builds. It supports AMD Ryzen 5000, 4000, and 3000 series processors, making it suitable for gaming, productivity, and general use.

Key Features

• Memory Support: 4 DDR4 DIMM slots with support for up to 128 GB of memory, including ECC and XMP profiles.
• Storage: Dual M.2 connectors (one PCIe 4.0/3.0 and one PCIe 3.0) and 4 SATA 6Gb/s ports for RAID 0, 1, and 10.
• Expansion: 1 PCIe 4.0/3.0 x16 slot for graphics cards and 1 PCIe 3.0 x1 slot for additional cards.
• Networking: Integrated Realtek GbE LAN and MediaTek Wi-Fi 6E with Bluetooth 5.3 for high-speed wireless connectivity.
• Audio: Realtek HD Audio codec supporting 7.1-channel surround sound with high-quality capacitors.

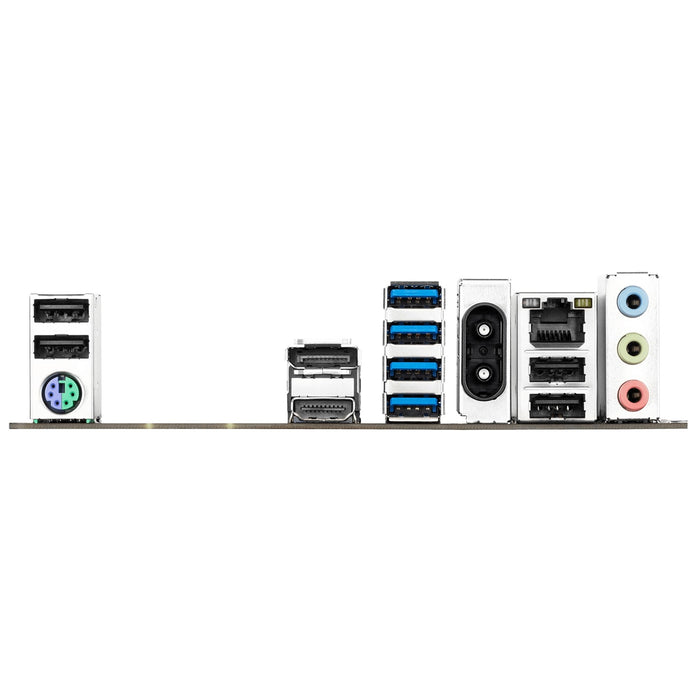

I/O & Connectivity

• Rear USB Ports: 4x USB 3.2 Gen 1 and 4x USB 2.0 ports for peripheral connections.
• Display Outputs: 1x DisplayPort (5120x2880@60Hz) and 1x HDMI (4096x2160@60Hz) for multi-monitor setups.
• Audio Jacks: 3x audio jacks for microphone, line-in, and line-out.
• Networking Ports: 1x RJ-45 port for Ethernet and antenna connectors for Wi-Fi.
• Other: PS/2 keyboard/mouse port and internal headers for USB, audio, and TPM.
