1000W Silverstone SX1000 Platinum SFX-L PSU

SKU: SST-SX1000-LPT
Availability: In Stock
Save £6.00 Save £6.00
£199.00
£205.00
£205.00 - £205.00
£205.00
£199.00 - £199.00
£199.00

READ OUR REVIEWS

ESTABLISHED 1996

GET FREE EXPERT ADVICE

VISIT OUR EXPERIENCE STORE
SFX-L form factor for use in small form factor computers
1000W continuous power output rated for 24/7 operation
Class-leading single +12V rail with 83.3A
High efficiency with 80 PLUS Platinum certification

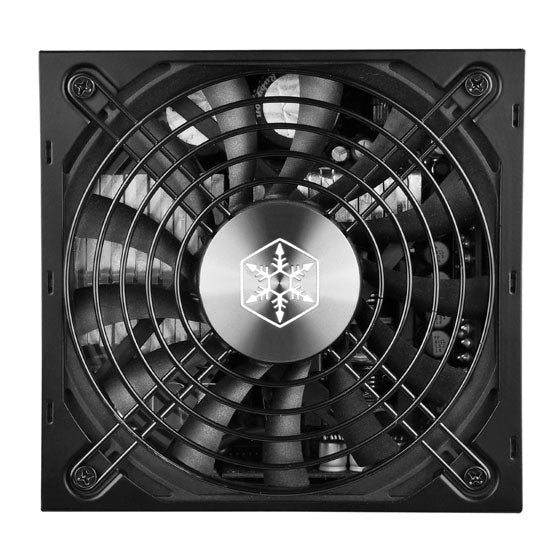

Silent running 120mm dual ball bearing fan with advanced semi-fanless operation
100% modular short cables with flexible flat arrays
Strict ±3% voltage regulation and low ripple & noise
24/7 continuous power output with 50? operating temperature
High quality construction with all Japanese capacitors


Product No.: SST-SX1000-LPT
Max. DC Output: 1000W
Power density: 969W per liter
Colour: Black(Lead-Free Paint)
Combined +3.3V & +5V: 125W
Combined +12V: 999.6W
Input Voltage: 90V ~ 264V
Input Frequency Range: 47Hz ~ 63Hz
PFC: Active PFC(PF>0.9 at full load)
Efficiency: 89% ~ 92% at 20% ~ 100% loading
MTBF: 100,000 hours
Operating temperature: 0°C ~ 50°C

Protection:
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Over temperature protection

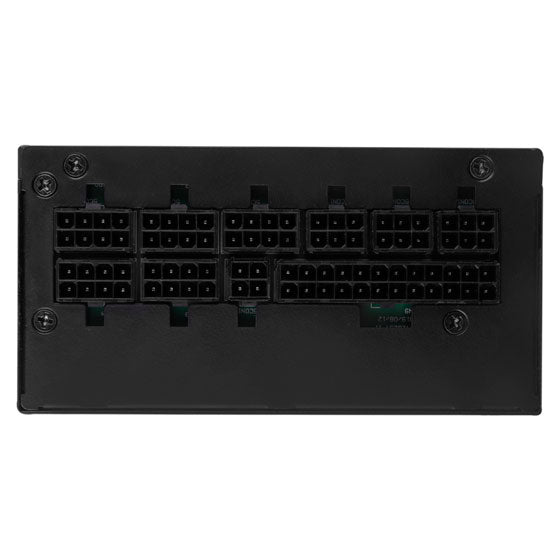

Connectors:
1 x 24 / 20-Pin motherboard connector(300mm)
2 x 8 / 4-Pin EPS / ATX 12V connector("400mm" x 2)
6 x 8 / 6-Pin PCIE connector("400mm / 150mm" x 3)
8 x SATA connector("300mm / 200mm / 100mm / 100mm" x 2)
3 x 4-Pin Peripheral connector(300mm / 200mm / 200mm)
1 x 4-Pin Floppy adapter connector(100mm)

Cooling System:Single 120mm dual ball bearing fan
Form factor:SFX-L
Noise Level: 0 ~ 36 dBA
Dimension: 125 mm (W) x 63.5 mm (H) x 130 mm (D) / 4.92" (W) x 2.5" (H) x 5.12" (D)
Weight: 1.68 Kg
Certification: 80 PLUS Platinum

Other
GPU Support list
Compatible with ATX12V v2.4
