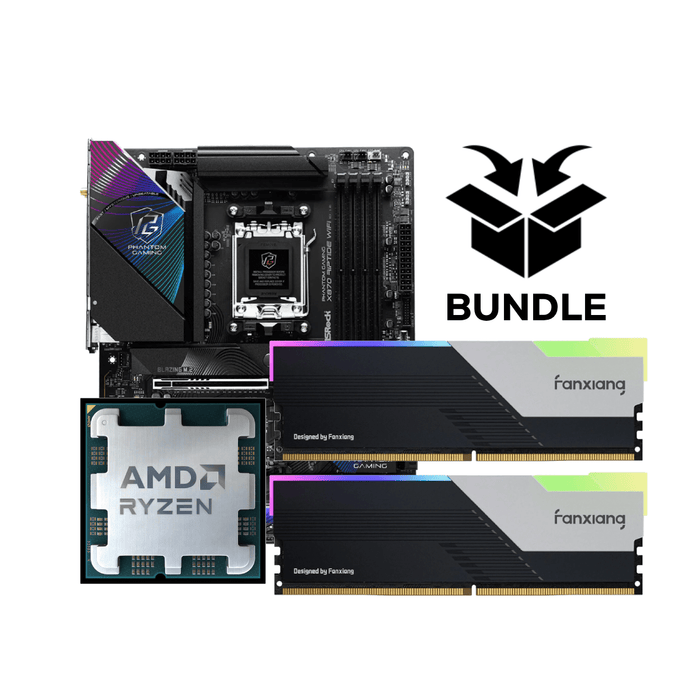

The ASRock Phantom Gaming X870 Riptide WiFi is an ATX motherboard built for gamers and enthusiasts demanding peak performance. Supporting AMD Ryzen 9000, 8000 and 7000 Series processors with the AM5 socket and X870 chipset, it features a powerful 14+2+1 Phase Power Design with 80A Dr.MOS for VCore+SOC, delivering smooth and reliable power for extreme overclocking and sustained workloads.
DDR5 support up to 8000+ MHz (OC) with 8-layer PCB design ensures stable memory performance. Equipped with PCIe 5.0 Blazing M.2 for ultrafast SSDs, dual USB4 Type-C ports, Wi-Fi 7, and Killer 2.5G LAN for comprehensive connectivity. Nahimic Audio provides immersive 7.1 CH HD sound, while the toolless M.2 heatsink design makes installation simple.
The AMD Ryzen 5 7500X3D features 6 cores and 12 threads with AMD's 3D V-Cache technology, providing 102MB of total cache for exceptional gaming performance. With boost clocks up to 4.5GHz, Precision Boost 2, and AMD EXPO memory support, this processor handles any game or workload with ease.
Built on TSMC's 5nm FinFET process, the Ryzen 5 7500X3D delivers efficient performance with a 120W TDP. The unlocked multiplier enables easy overclocking via AMD Ryzen Master, while Precision Boost Overdrive uses your motherboard's robust power design to boost clocks higher and longer.
The Juhor Star Domain RGB is a high-performance DDR5 memory kit engineered for excellent stability and speed on modern gaming platforms. Operating at a blistering 6000MHz with tight CL38 timings, this 32GB (2x16GB) non-ECC unbuffered dual-channel kit provides the massive bandwidth and snappy responsiveness required for AAA gaming and heavy multitasking.
The modules feature a premium aluminum heat spreader designed for optimal thermal dissipation, keeping the memory cool under extended heavy workloads. Outfitted with striking, customizable RGB lighting, the Star Domain kit blends next-gen DDR5 performance with a sleek, futuristic aesthetic to elevate any build.
| CPU | Supports AMD AM5 Socket Ryzen 9000, 8000 and 7000 Series Processors |
|---|---|
| Chipset | AMD X870 |
| Memory | 4 x DDR5 DIMM, Dual Channel, up to 8000+(OC), Max. 256GB |
| Graphics | 1 x HDMI 2.1 (4K 120Hz), 2 x USB4 (8K 30Hz) |
| Audio | 7.1 CH HD Audio (Realtek ALC4082), Nahimic Audio |
| LAN | Killer 2.5 Gigabit LAN (E3100G) |
| Wireless | 802.11be Wi-Fi 7 (2x2), Bluetooth 5.4 |
| Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 |
| Storage | 1 x Blazing M.2 Gen5x4, 2 x Hyper M.2 Gen4x4, 4 x SATA3 |
| USB | 2 x USB4 Type-C (40 Gb/s), 1 x USB 3.2 Gen2x2 Type-C (Front), 2 x USB 3.2 Gen2 Type-A, 7 x USB 3.2 Gen1, 8 x USB 2.0 |
| Power | 24 pin ATX, 2 x 8 pin 12V, 14+2+1 Power Phase |
| Form Factor | ATX (12.0" x 9.6", 30.5 x 24.4 cm) |
| Model | Ryzen 5 7500X3D |
|---|---|
| Cores / Threads | 6 / 12 |
| Max. Boost Clock | Up to 4.5GHz |
| Base Clock | 4.0GHz |
| Cache | 102MB Total |
| Default TDP | 120W |
| Process | TSMC 5nm FinFET |
| Socket | AM5 |
| Memory Support | DDR5-5200 (2 channels) |
| Graphics | AMD Radeon (2 cores) |
| Overclocking | Unlocked |
| Model | Star Domain RGB |
|---|---|
| Type | RGB DDR5 288Pin Non-ECC Unbuffered DIMM |
| Frequency | 6000MHz |
| CL | 38 |
| Capacity | 32GB (2 x 16GB) |
| Material | Aluminum alloy |
| Platforms | AMD, Intel |
| Packing | Two packs |
