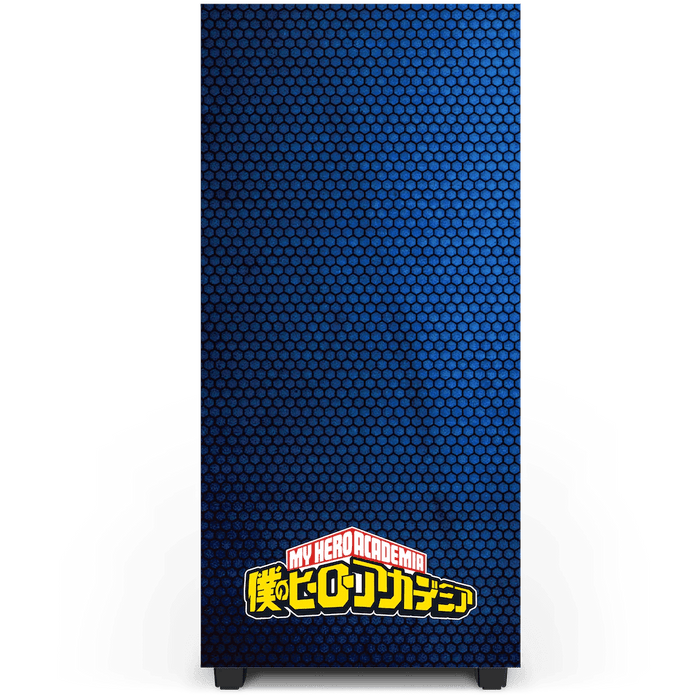

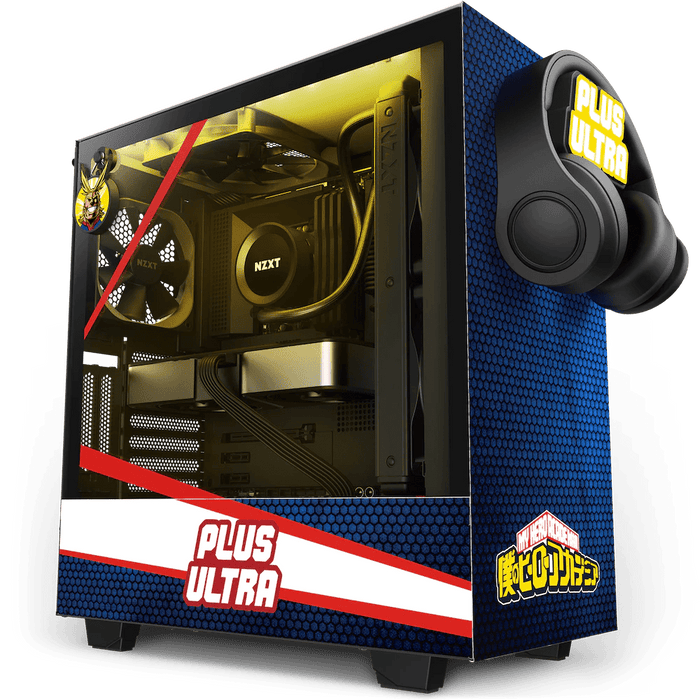

NZXT CRFT H510i All Might Limited Edition Compact ATX Case

KEY SPECS

• Motherboard Support:Mini-ITX, MicroATX, ATX

• Enclosure Type:Compact Mid-Tower

• Case Material:SGCC Steel, Tempered Glass

DIMENSIONS

• Height:460mm / 18.11 inches

• Width:210mm / 8.27 inches

• Depth:428mm / 16.85 inches

• Weight:6.8 kg / 15lbs

COMPATIBILITY & CLEARANCE

• Max CPU Cooler Clearance:165mm

• Max GPU Clearance:321 - 381mm

• Front Fan & Radiator Clearance:60mm

• Vertical GPU Clearance:50.8mm

• Cable Management:19 - 23mm

FRONT I/O PORTS

• USB 3.2 Gen 2 Type-A:1

• USB 3.2 Gen 1 Type-C:1

• Headset Audio Jack:1

SMART DEVICE

• Fan Channels:3 (10W max per channel)

• NZXT RGB Connector:2 (Support up to 40 LEDs)

EXPANSION SLOTS

• Standard:7

• Vertical:2

DRIVE BAYS

• 2.5":2 + 1

• 3.5":2 + 1

FAN SUPPORT

• Front:2 x 120mm / 2 x 140mm

• Top:1 x 120mm / 1 x 140mm

• Rear:1 x 120mm

• Filters:All air intakes

RADIATOR SUPPORT

• Front:280mm

• Top:-

• Rear:120mm

FAN SPECS

• Model:Aer P 120mm (Case Version)

• Speed:1,200 ± 200RPM

• Airflow:50.42 CFM

• Noise:28 dBA

• Fan Connector:3-pin
