Jonsbo D30 mATX White Case

FLEXIBLE HARDWARE SUPPORT

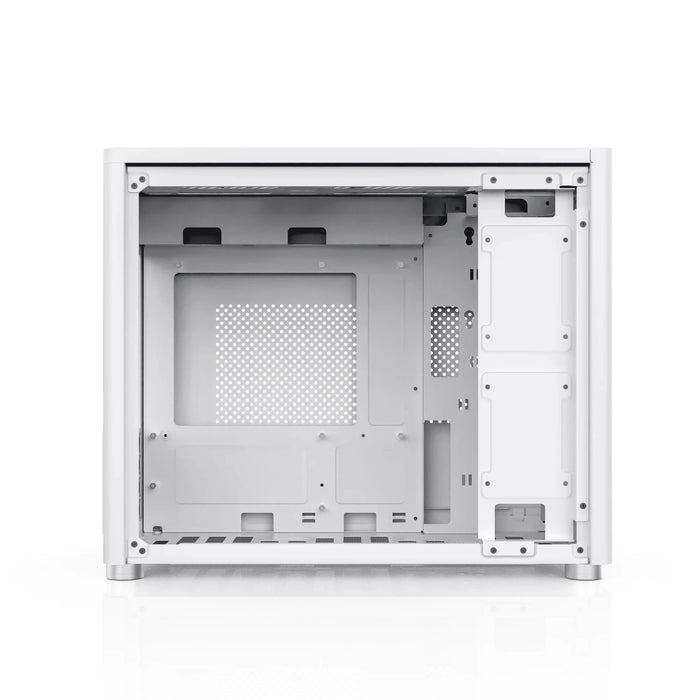

The Jonsbo D30 is a small form factor PC case with an intelligently designed interior to optimise the hardware it can support. For the motherboard, there is accommodation for either a Micro-ATX, DTX, or Mini-ITX model. The frame has four expansion slots for supporting PCIe hardware and your graphics card. There is clearance for a maximum length of 355mm when it comes to your GPU, however this is reduced to 305mm when utilising a larger PSU.

FRONT MOUNTED POWER

Keeping the Jonsbo D30 interior looking clean, the power supply is mounted at the front of the chassis. From the side on view, this area is covered with metal panelling serving as an open yet dedicated PSU shroud. There is space for an ATX PSU, up to 220mm long. It should be noted that power supplies above 170mm in length affect the GPU clearance.

This area also holds storage drive mounts for up to four drives. Three 2.5” SSDs can be mounted onto the panelling, with two on the front and one hidden on the backplate. A fourth drive can be mounted onto the bottom of the chassis. This can either be a 2.5” SSD or 3.5” HDD, depending on your storage needs.

KEEPING COOL

To counter the drawback of having tightly packed components, the Jonsbo D30 has a comprehensive cooling solution that offers flexible options. Whether you prefer air or water-cooling, this PC case can support a wide range of thermal hardware.

The top panel can be used for either two 120mm or 140mm fans, with up to a 240mm AiO radiator as an alternative. Upon the bottom panel, there are mounts for three 120mm or two 140mm fans, once again with the option to instal a 240mm AiO system. Finally, the rear panel can host either a 120mm fan or radiator. If you prefer air-cooling, there is clearance for a 168mm tall CPU cooler. Paired with the existing ventilation on the panel work, the Jonsbo D30 offers incredible thermal performance.

Additionally, there are four dust filters attached to various ventilation panels, to prevent dust build up in your gaming PC.

MODERN AESTHETICS

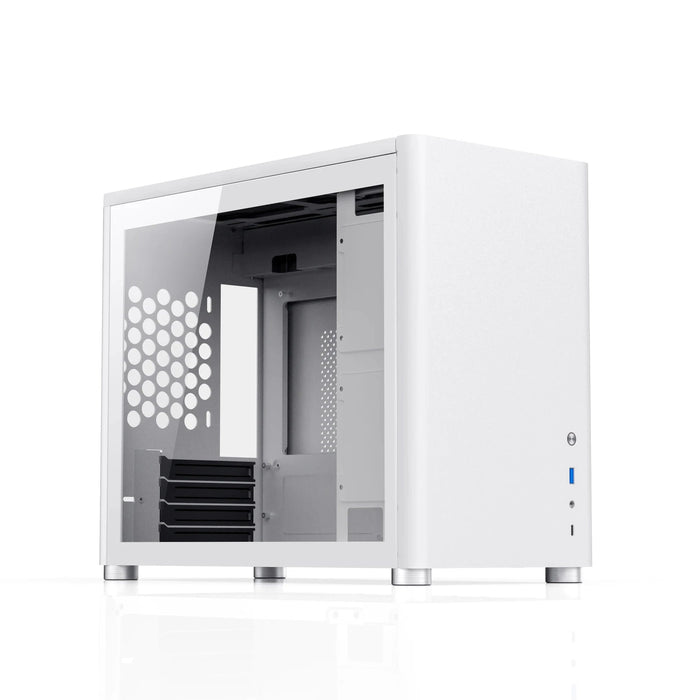

Overall, the Jonsbo D30 has a sleek and modern aesthetic. Instead of sharp lines, corners and edges have been rounded off, creating a somewhat continuous effect. Additionally, the side metal and tempered glass panels can be switched, for a boost to airflow. The chassis is available in one of three colours, black, white, and silver. This model is black, cutting a bold frame that would be a stylish addition to any gaming environment.

Further helping to keep the interior tidy, there is a cable routing area behind the motherboard backplate. This features dedicated holes to feed through the necessary cables, without cluttering your build. Additionally, the I/O panel rests in front of this area, optimising access. This features a power button, audio jack, and two USB 3.2 ports – one type A and one type C. Both USB ports have a transfer rate of 5Gbps, for fast communication between your device and PC.
