Jonsbo D30 mATX Silver Case

SKU: D30 Silver
Low stock
Original price £99.00 - Original price £99.00
Original price
£99.00 - £99.00
Current price £99.00

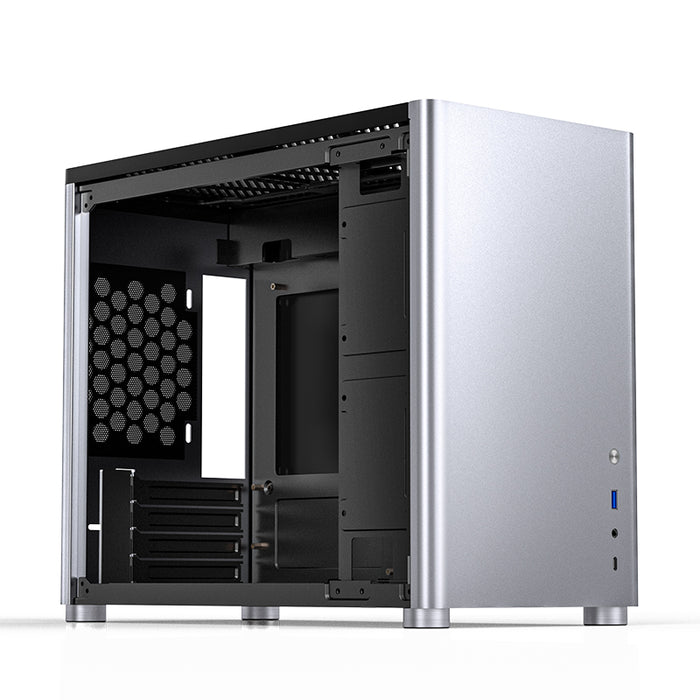

The Jonsbo D30 is a sleek, small form factor PC. Its rounded edges and smooth lines give it a modern aesthetic whilst the carefully curated interior provides flexible support for your hardware. Able to accommodate up to a Micro-ATX motherboard and triple-slot GPU, you can build a powerful gaming PC within this small frame. Plus, the extensive fan and radiator support keeps the air flowing and temperatures down.


  • Micro-ATX PC case manufactured from aluminium alloy and steel
  • 3mm tempered glass panel to showcase hardware
  • Sleek and modern aesthetic with smooth lines
  • Comprehensive cooling support to maintain temperatures
  • Accommodates up to Micro-ATX motherboard and 355mm long GPU
  • Flexible storage solution and front mounted PSU


The Jonsbo D30 is a small form factor PC case with an intelligently designed interior to optimise the hardware it can support. For the motherboard, there is accommodation for either a Micro-ATX, DTX, or Mini-ITX model. The frame has four expansion slots for supporting PCIe hardware and your graphics card. There is clearance for a maximum length of 355mm when it comes to your GPU, however this is reduced to 305mm when utilising a larger PSU.


Keeping the Jonsbo D30 interior looking clean, the power supply is mounted at the front of the chassis. From the side on view, this area is covered with metal panelling serving as an open yet dedicated PSU shroud. There is space for an ATX PSU, up to 220mm long. It should be noted that power supplies above 170mm in length affect the GPU clearance.

This area also holds storage drive mounts for up to four drives. Three 2.5” SSDs can be mounted onto the panelling, with two on the front and one hidden on the backplate. A fourth drive can be mounted onto the bottom of the chassis. This can either be a 2.5” SSD or 3.5” HDD, depending on your storage needs.


To counter the drawback of having tightly packed components, the Jonsbo D30 has a comprehensive cooling solution that offers flexible options. Whether you prefer air or water-cooling, this PC case can support a wide range of thermal hardware.

The top panel can be used for either two 120mm or 140mm fans, with up to a 240mm AiO radiator as an alternative. Upon the bottom panel, there are mounts for three 120mm or two 140mm fans, once again with the option to instal a 240mm AiO system. Finally, the rear panel can host either a 120mm fan or radiator. If you prefer air-cooling, there is clearance for a 168mm tall CPU cooler. Paired with the existing ventilation on the panel work, the Jonsbo D30 offers incredible thermal performance.

Additionally, there are four dust filters attached to various ventilation panels, to prevent dust build up in your gaming PC.


Overall, the Jonsbo D30 has a sleek and modern aesthetic. Instead of sharp lines, corners and edges have been rounded off, creating a somewhat continuous effect. The chassis is available in one of three colours, black, white, and silver. This model is silver with two tempered glass panels for a sublime finish.

Further helping to keep the interior tidy, there is a cable routing area behind the motherboard backplate. This features dedicated holes to feed through the necessary cables, without cluttering your build. Additionally, the I/O panel rests in front of this area, optimising access. This features a power button, audio jack, and two USB 3.2 ports – one type A and one type C. Both USB ports have a transfer rate of 5Gbps, for fast communication between your device and PC.


Brand Jonsbo
Model D30 PC Case
Form Factor Micro-ATX
Colour Silver
Dimensions 240mm x 401mm x 325mm
W x D x H
Materials 1.5mm aluminium alloy
0.6mm steel plate
3mm tempered glass
Storage Support 3 x 2.5” + 1 x 3.5”
Or 4 x 2.5”
Motherboard Support Micro-ATX / DTX / Mini-ITX
Expansion Slots 4
I/O Panel 1 x USB 3.2 Type C (5Gbps)
1 x USB 3.2 Type A (5Gbps)
1 x Audio jack
170mm – 220mm
PSU Size affects GPU clearance
GPU Support Between 330mm – 355mm
Max length reduced to 305mm when PSU exceeds 170mm
CPU Cooler Max height 168mm
Cooling Support Top:
2 x 120mm/140mm fans
Or 1 x 240mm radiator
3 x 120mm / 2 x 140mm fans
Or 1 x 240mm radiator
1 x 120mm fan or radiator
Weight 4.96kg
