MAKE OF IT WHAT YOU WILL
Supporting cases ranging in size from m-ATX to ATX, and featuring a removable adjustable GPU bracket, this remastered design allows unprecedented compatibility with various builds and setups. A PCIe 4.0 riser cable is included to assist the installation process and ensure high efficiency at uncompromised speeds.
COOLER MASTER RISER CABLE PCIE 4.0 INCLUDED
Allows for efficient data transmission and connectivity between the latest hardware components.
EFFORTLESSLY SHOWCASE YOUR GRAPHICS CARD
Bring the best out of your components by showing off your GPU.
ATX & M-ATX COMPATIBILITY
Designed for both ATX and mATX cases, this accessory is compatible with the latest GPUs available on the market.
INSTALLATION IN A M-ATX CASE
When installing the Vertical GPU Holder Kit V3 in a m-ATX case users may need to remove the rear case fan for additional clearance.
It is also necessary to use low profiles CPU air-coolers, all-in-one liquid coolers, or custom water cooling loops to guarantee optimal clearances between components.
COMPATIBLE WITH ALL STANDARD ATX CHASSIS

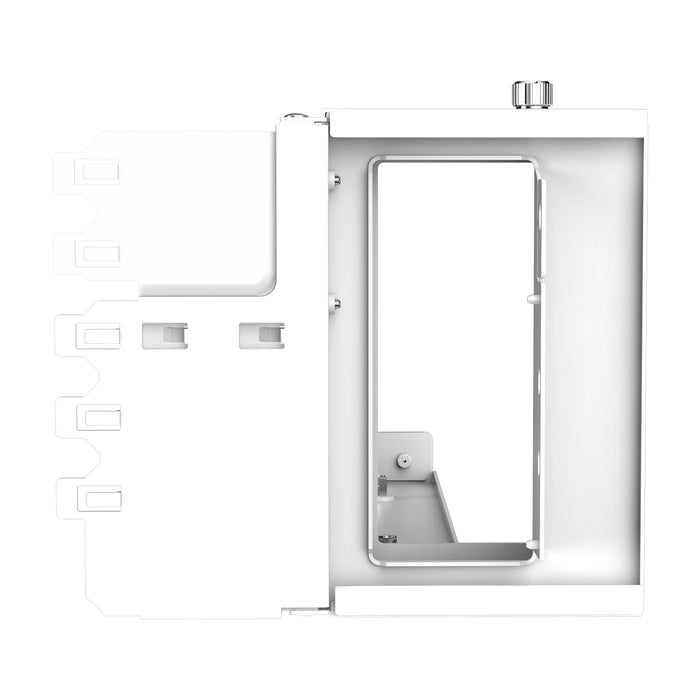

The newly revised Vertical Graphics Card Holder Kit fits all standard ATX chassis, now providing even more options for adjusting graphics card position.
...AND ALL STANDARD M-ATX CHASSIS
Compatibility with m-ATX cases is guaranteed thanks to the brand new design that simply requires 4 PCi slots for installation.
GPU connection to external monitors is facilitated due to the modular design, now 100% adjustable according to preference and needs.
TOOLLESS, INSTANTLY ADJUSTABLE DESIGN
Granted compatibility with all standard ATX and mATX chassis.
X AXIS ADJUSTABILITY
Toollessly adjustable up to 65mm horizontally...
Z AXIS ADJUSTABILITY
...as well as up to 30mm towards the side panel.
PREMIUM MATERIALS, 42% INCREASED DURABILITY
Premium SGCC steel provides reliable support, eliminating possibility of sagging or deformation.
NATIVELY COMPATIBLE WITH "FLOW-THROUGH" GPU COOLERS
The fully ventilated design is specifically designed to allow unrestricted airflow for "flow-through" GPU coolers.
INTUITIVE INSTALLATION PROCESS
The modular design allows GPUs to placed in the system after the holder has been fixed in a preferred layout.
White & Gray
Supported Chassis Type
Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.)
Supported Graphics Cards
Any length up to 3 slots wide
Riser Cable Model
Riser Cable PCIe 4.0 x16
PCIe 4.0 and older
CE Certifications Number
PCB / Wire UL Numbers
E1895721 / E252840
Electronic Component Materials
PCBA, Tinned Copper Wire 30 AWG
ABS, PP, SGCC Steel, Nickel, Gold, Brass
PCIe x16 Male to PCIe x16 90° Female
Rated Working Voltage & Current
DC 12V / 5A
-20° to +100° Celsius
Required PCI slots
Minimum 4 PCI slots required for mounting
Dimensions ( L x W x H )
GFX Holder kit: 249 x 148.1 x 141.8 mm (close size)
GFX Holder kit: 305 x 178.1 x 141.8 mm (open size)
Riser cable: 165mm

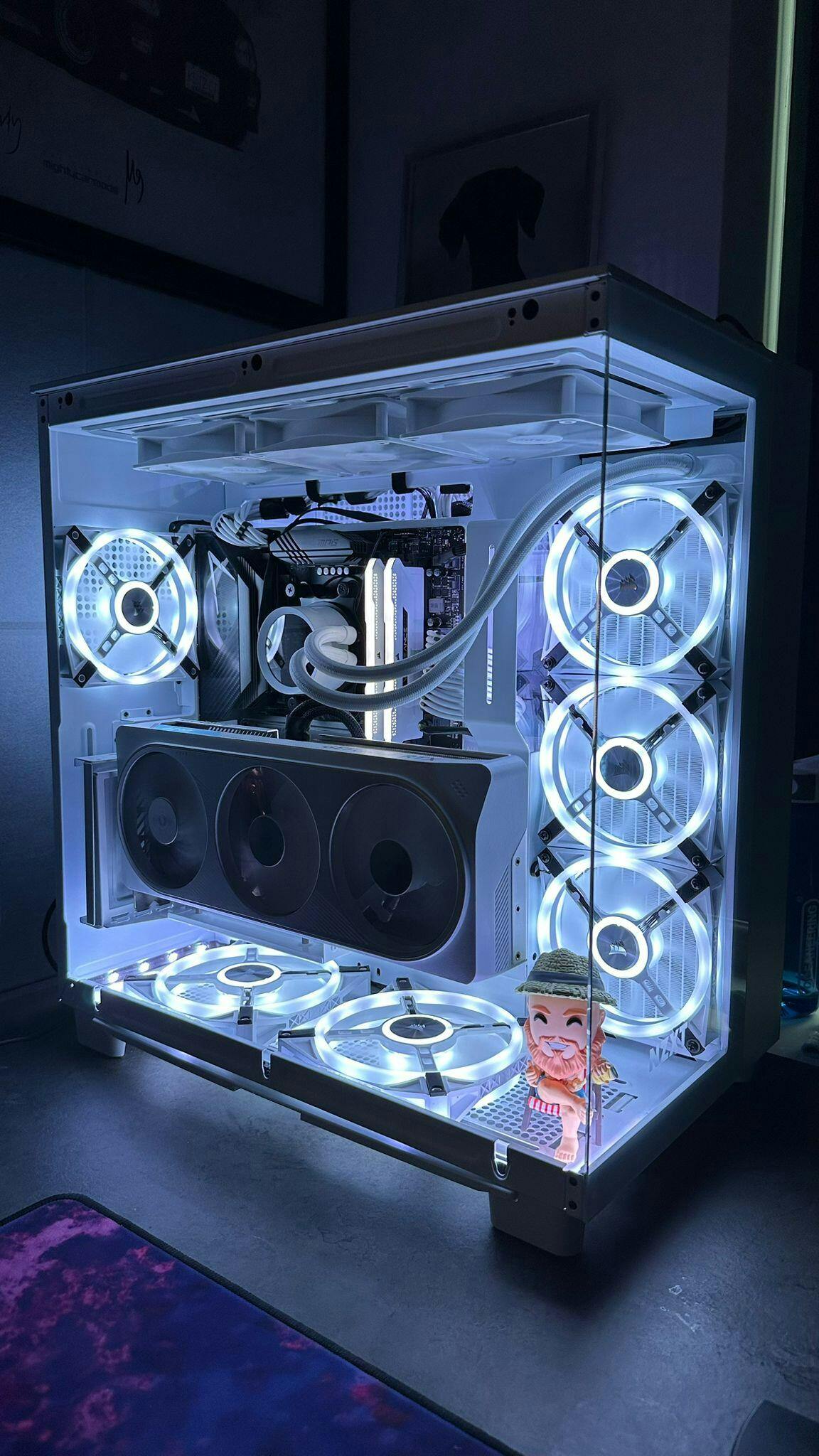

Great product, sturdy and the adjustability it gives its amazing. It holds my 4070ti Aero well. No sag at all.
Worth noting, the mount does add around a centimetre of length to your GPU regardless of the position you choose. Nothing major. My guess would be most ATX cases would allow for this no problem.
With regards to shipping, was very quick, came in 2 days. Packing was not damaged.
