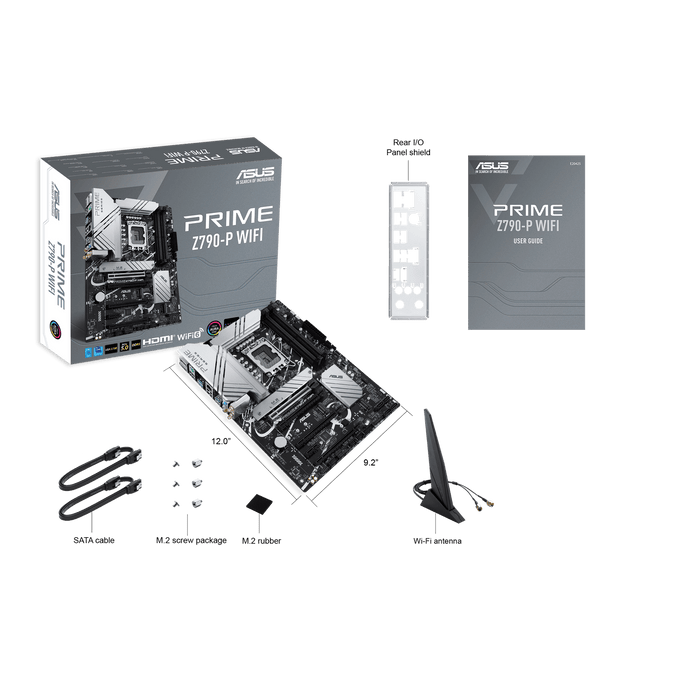

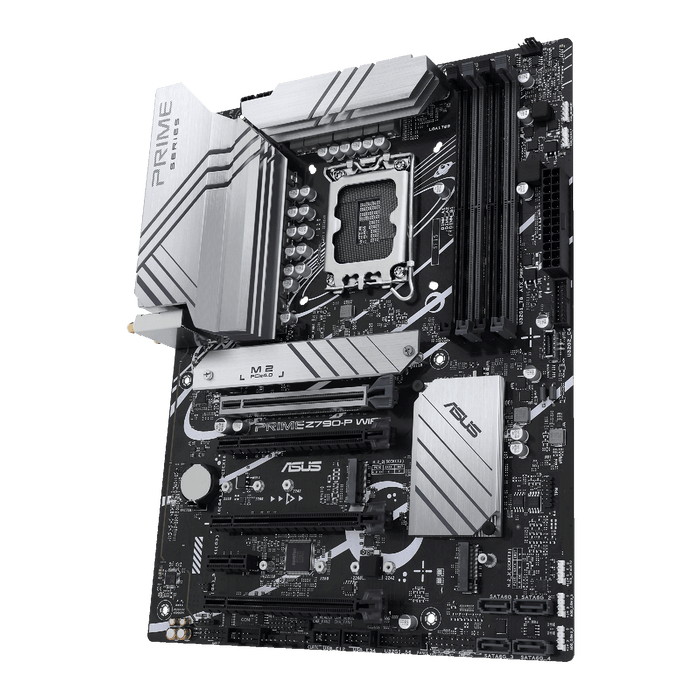

Asus PRIME Z790-P WIFI DDR5 ATX Motherboard

Name: Asus PRIME Z790-P WIFI DDR5 ATX Motherboard
Brand: ASUS
SKU: PRIME Z790-P WIFI
Price: 229.0 GBP
Availability: OutOfStock

SKU: PRIME Z790-P WIFI

Availability:

Out of stock

Out of Stock

£229.00

£269.00

£269.00 - £269.00

£269.00

£229.00 - £229.00

£229.00

Quantity

READ OUR REVIEWS

ESTABLISHED 1996

GET FREE EXPERT ADVICE

VISIT OUR EXPERIENCE STORE

CPU	Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors
Chipset	Intel Z790
Memory	4 x DIMM, Max. 128GB, DDR5 5600MHz upto 7000MHz (OC) Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics Outputs	1 x HDMI port 1 x DisplayPort VGA resolution support depends on processors' or graphic cards' resolution.
PCI Slots	Intel® 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel® Z790 Chipset 3 x PCIe 4.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot
Storage	Total supports 3x M.2 slots and 4 x SATA 6Gb/s ports Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel® Z790 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
Networking	1 x Realtek 2.5Gb Ethernet WIFI 6 Bluetooth
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC
Connectivity	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port
Internal Ports	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header
Form Factor	ATX Form Factor - 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Warranty	Three Year Manufacturer Warranty
