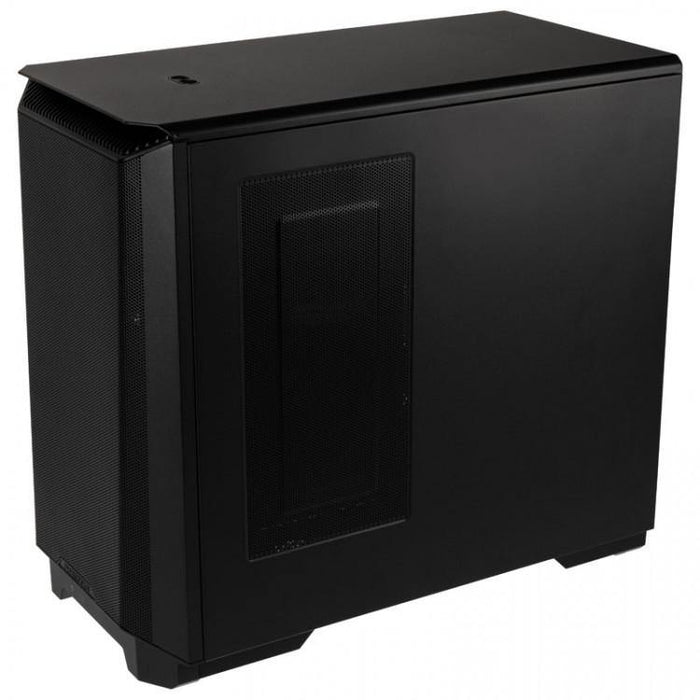

The Phanteks Eclipse P200A D-RGB is the perfect mini-ITX case for hosting a high-end gaming PC without compromising on hardware performance. Part of the Eclipse “A” range, the Phanteks P200A is the latest edition in the series (line-up), characterised by outstanding airflow performance and dust filtration. This PC case is capable of housing a full-size ATX power supply, offering sleek cable management and substantial room for large GPUs. Additionally, the Phanteks P200A offers a cooling-friendly design with multiple options for mounting (installing) fans.
THE FEATURES OF THE PHANTEKS ECLIPSE P200A AT A GLANCE:
- Vertical GPU ready, supporting up to three 355mm GPUs with plenty of room for full-size ATX power supplies
- Supports CPU coolers up to 165mm in height
- Can house up to four 2.5” SSDs or four 3.5” HDDs.
- x7 fans can be installed at the front, sides or rear, giving plenty of choice for radiator support
- Ample room for cable management to keep your PC's interior neat and tidy.
- Elegant and addressable lighting options
- I/O panel with 2 x USB Type-A ports, 1 x USB Gen-2 Type-C port, combo audio jack and two buttons for illumination
3-SLOT GPU SUPPORT
Despite a compact form factor, the Phanteks Eclipse P200A ITX case supports graphics cards up to 355mm in length. With three expansion slots, this functional ITX case will allow you to install even the most powerful graphics cards for the ultimate gaming performance.
The Phanteks Eclipse P200A allows you to install your graphics card vertically using the Phanteks Riser Cable (sold separately). You’ll be able to see the entire GPU along with the fans through the stylish glass side panel. However, Phanteks makes it easy to switch back to a horizontal GPU layout by unscrewing the rear screws in order to swap the appropriate panels.*
*The Phanteks Eclipse P200A ITX case is compatible with the Phanteks PH-CBRS_FLTS Riser Cable, with no additional modifications required.
EASY SET UP
Designed to present a user-friendly building experience, the Phanteks Eclipse P200A offers plenty of space for all of your components. Coupled with its integrated cable management features, the P200A ensures a tidy and smooth installation process to help get your PC running without loose cables getting in the way.
Utilising a flexible interior and functional size, the Phanteks Eclipse P200A allows users to create the perfect setup.
VAST COOLING OPTIONS
Although compact, the Phanteks Eclipse P200A ITX case provides a wide selection of cooling options for a custom build that’s right for you. The Phanteks P200A accommodates up to 7 x 120mm fans on the front, sides or rear, fitting around your PC’s unique component setup. Alternatively, the Phanteks P200A can house a fan setup of up to 2 x 140mm and up to 5 x 120mm.
The Eclipse P200A’s variety of fan options equips you with superb radiator support as well. Whether installing a 240mm or 280mm radiator on the front, the case’s ventilation mounts allow for dual 120mm/140mm fans on the side in the size of your choice between 120mm and 140mm.
Airflow in the Phanteks Eclipse P200A case is made even better with the featured Ultra-fine Performance mesh on the front panel. A 1mm perforation, this innovative mesh allows high airflow whilst keeping dust out of your PC case. Thanks to the Phanteks Eclipse P200A’s full metal construction, the performance mesh covers a large area of the front without the need for any additional part. No separate dust filter is required with the Ultra-Fine Performance mesh either, which means you’ll be given extra performance and less restriction.
SIMPLE YET BRILLIANT LIGHTING
The D-RGB model of the Phanteks Eclipse P200A case has been manufactured with an elegant lighting solution. Illuminated on top with the rest of the case lighting is the power button that’s pleasing to the eye. This mini-ITX case has several other buttons: one for changing display and another alternate's colour, so you can tailor your lighting display to your personal preference.
Taking functionality to the next level, the Phanteks Eclipse P200A lets you connect additional accessories to it. As an example, you could connect an alternative all-in-one cooler whilst connecting the actual pump to the case’s lighting. Likewise, if you want to control everything with your motherboard, the P200A’s 5V addressable header allows you to route into that separately.
PHANTEKS ECLIPSE P200A D-RGB MINI-ITX CASE SPECIFICATIONS:
| Case Dimension (WxHxD) |
205 mm x 365 mm x 400 mm / 8.1 in x 14.4 in x 15.7 in |
| Form Factor |
Mini-ITX Tower |
| Materials |
Steel Chassis, Tempered Glass Window |
| Motherboard Support |
Mini-ITX, mini-DTX |
| Front IO |
USB-C GEN 2 (10Gbps), 2x USB 3.0, Microphone/Headphone, LED Mode Button, LED Colour Button, Power Button |
| Connectors |
Power Switch, D-RGB Expansion, D-RGB Third Party, D-RGB MB Adapter, HD-audio, USB 3.0, USB 3.2 GEN2 Type-E, SATA |
| PCI Slots |
3 |
| Vertical GPU ready |
Yes, 3-slots (PH-CBRS_FLTS Phanteks Riser Cable required sold separately) |
| Internal 3.5” bay |
4 (Stackable 3.5” Bracket sold separately/not included) |
| Internal 2.5” bay |
4 (4x included) |
| Total Fan Mounts |
7 x 120 mm / 2 x 140 mm + 5 x 120 mm |
| Front Fan |
2 x 120 mm / 2 x140 mm (2 x 120 mm D-RGB PWM included) |
| Side Fan |
2 x 120 mm |
| Rear Fan |
1 x 120 mm |
| Bottom Fan |
2 x 120 mm |
| Dust Filters |
base |
| Front Radiator |
Up to 240/280 mm |
| Side Radiator |
Up to 240 mm |
| Rear Radiator |
120 mm |
| Front Radiator Clearance |
140 x 325 mm |
| Side Radiator Clearance |
120 x 279 mm |
| GPU Length |
355mm/13.98 in |
| GPU Thickness |
3-slot, 65 mm |
| CPU Cooler Height |
165 mm / 6.5 in |
| CPU Cooler Height with Vertical GPU |
72mm or 92mm depending on Vertical PCI slot position |
| PSU Length |
205 mm (190 mm recommended) |
| Package Dimension |
415 x 285 x 485 mm / 16.3 x 11.2 x 19.1 in |
| Net Weight |
5.5 kg/ 12 lbs |
| Gross Weight |
6.6 kg / 15 lbs |
| Warranty |
5 Years Limited |
